Door Sensor

Roller Door Sensor

Sold: 0 Stock: instock
$0.00
Product Introduction
Contact type: NC -- Switch ON when magnet nearly NO/COM are available Operating gap: ≥50mm (Undisturbed test) Max. switching voltage: 100V DC/AC Max. switching current: 0.5A Operating load: 100,000 Working temperature: -20 to 80℃ Working life: > 100,000 times Connection type: 480mm armoured cable Material: Zinc alloy (magnetic edge ABS) Color: Silver Packaging: 1 set/bag, 60 sets/ctn G.W. : 20KGS
Quantity:
Buy Now
Product Details
Product Details

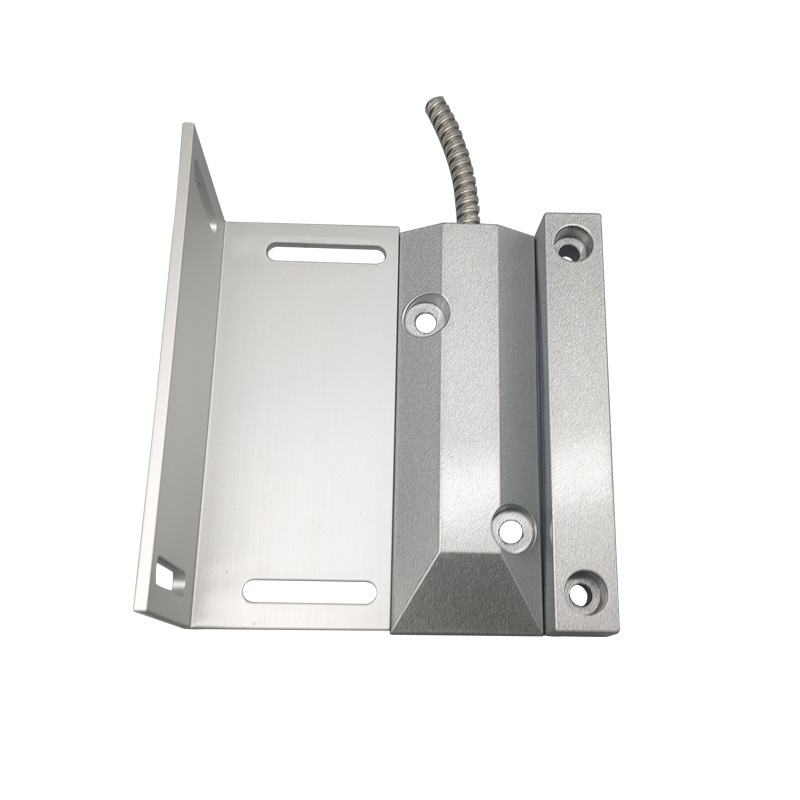

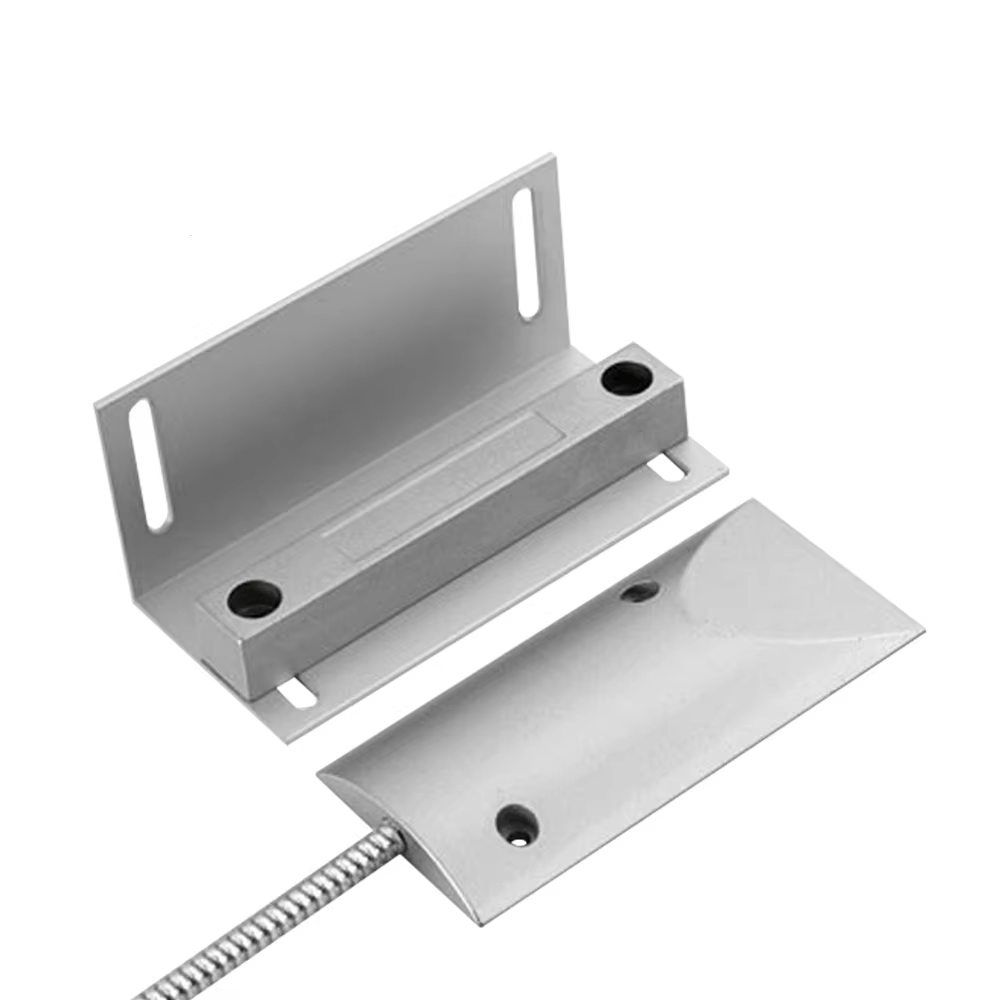

Magnetic contact is widely used for alarm system(panel) to detect state of door. It consist of a reed
switch part and a magnet part . When door closed, reed switch is effected by magnet and turn ON;
when door open, reed switch is effected by magnet and turn OFF, trigger alarm.
